Rear Motor

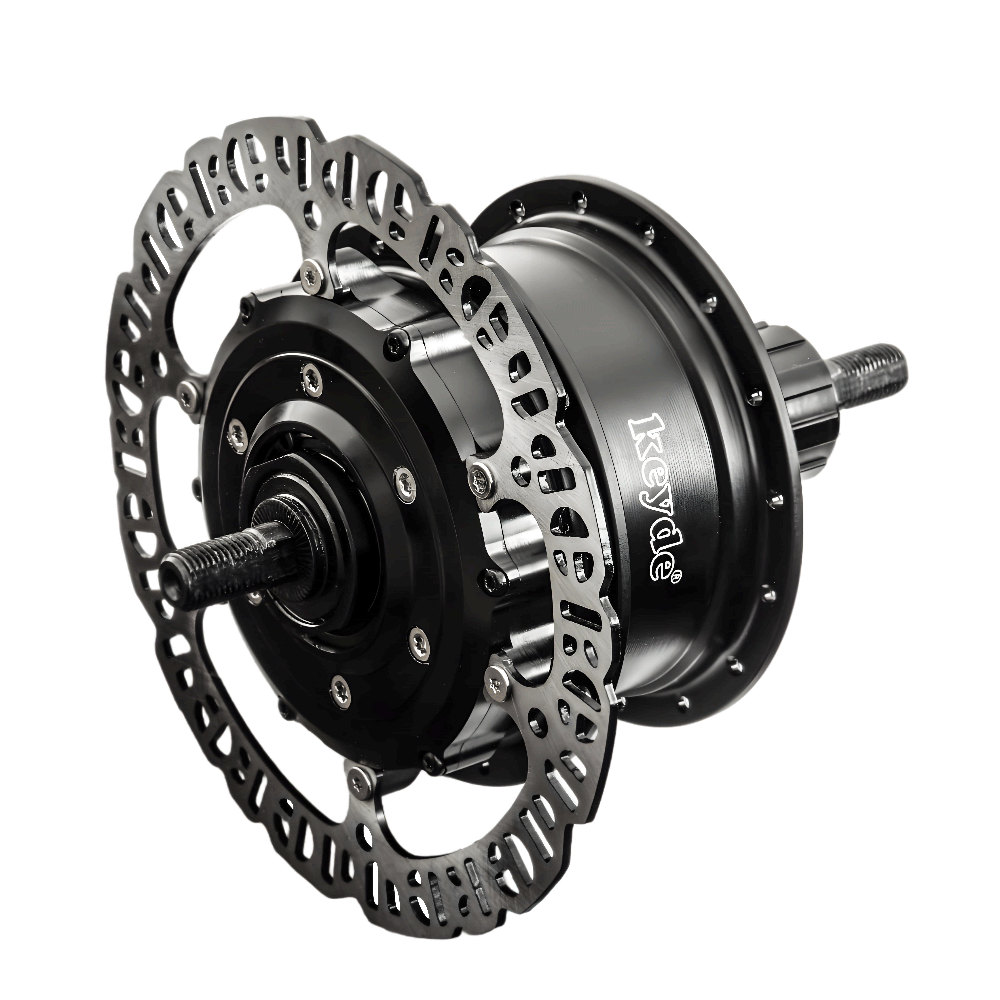

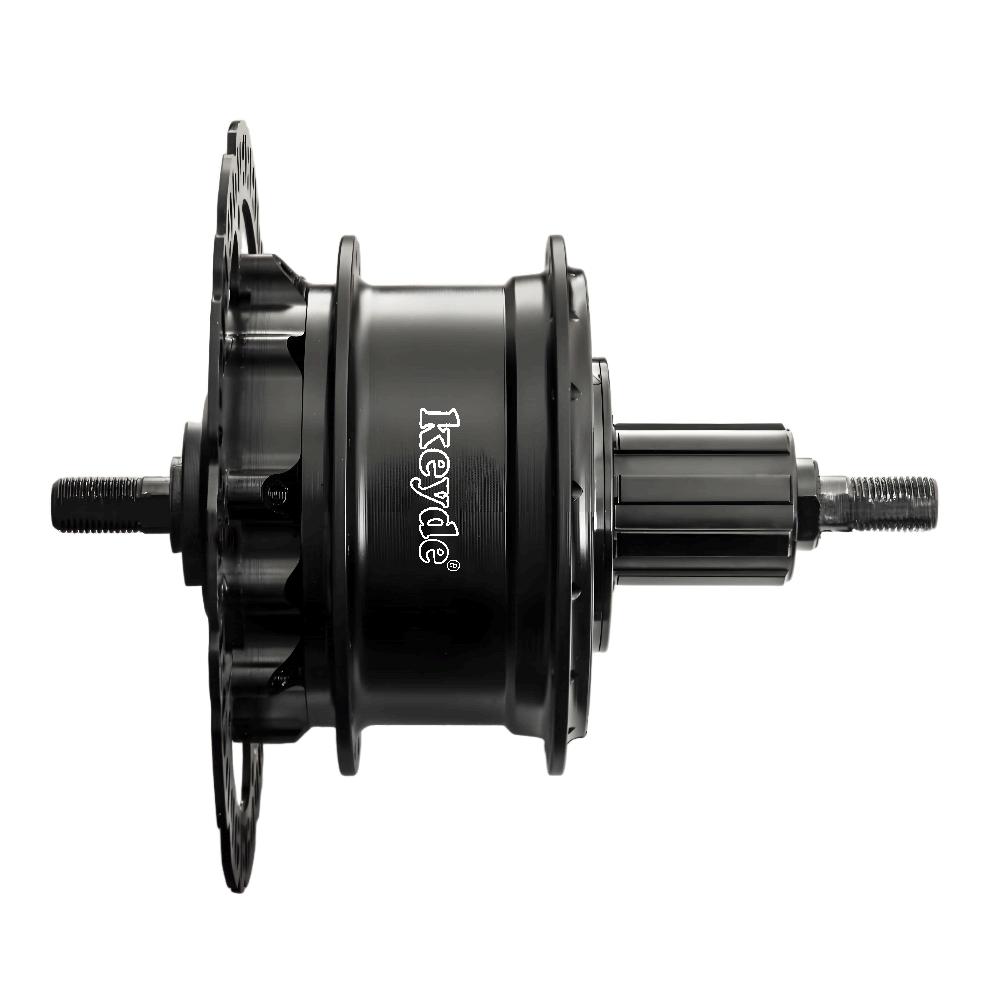

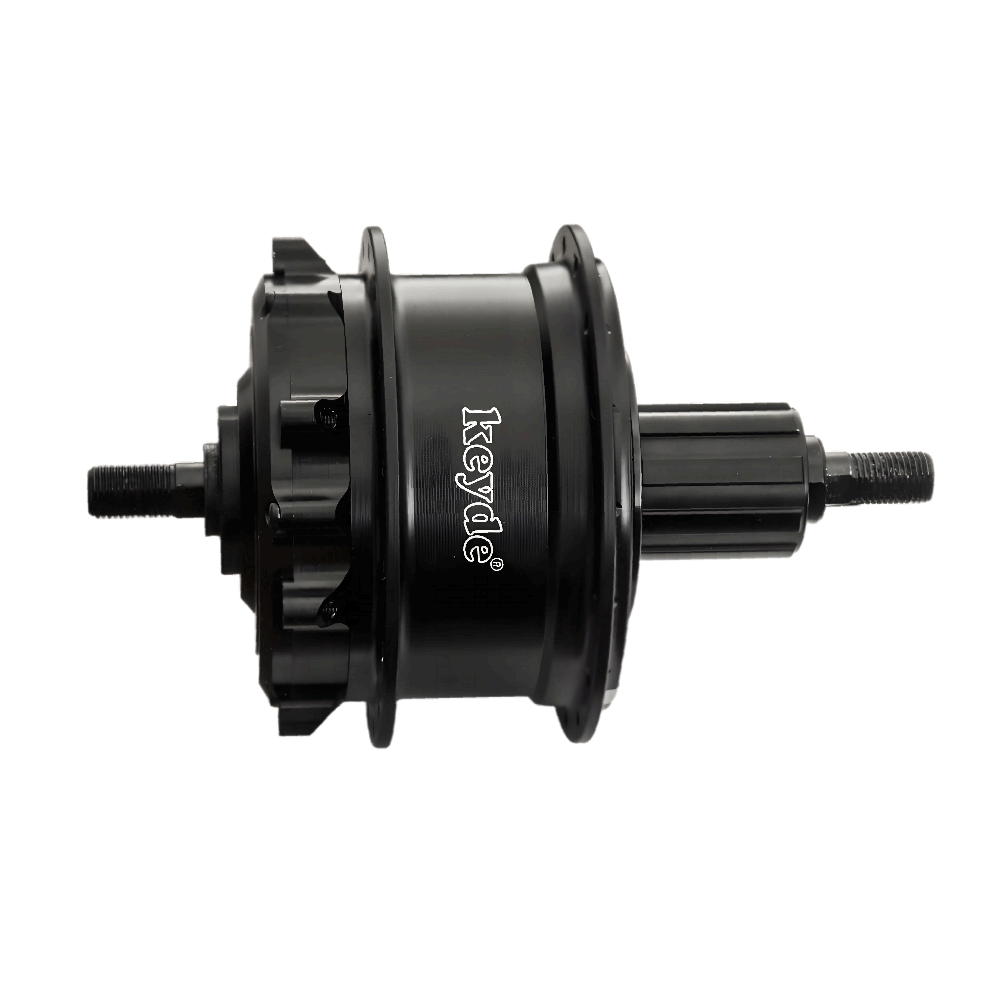

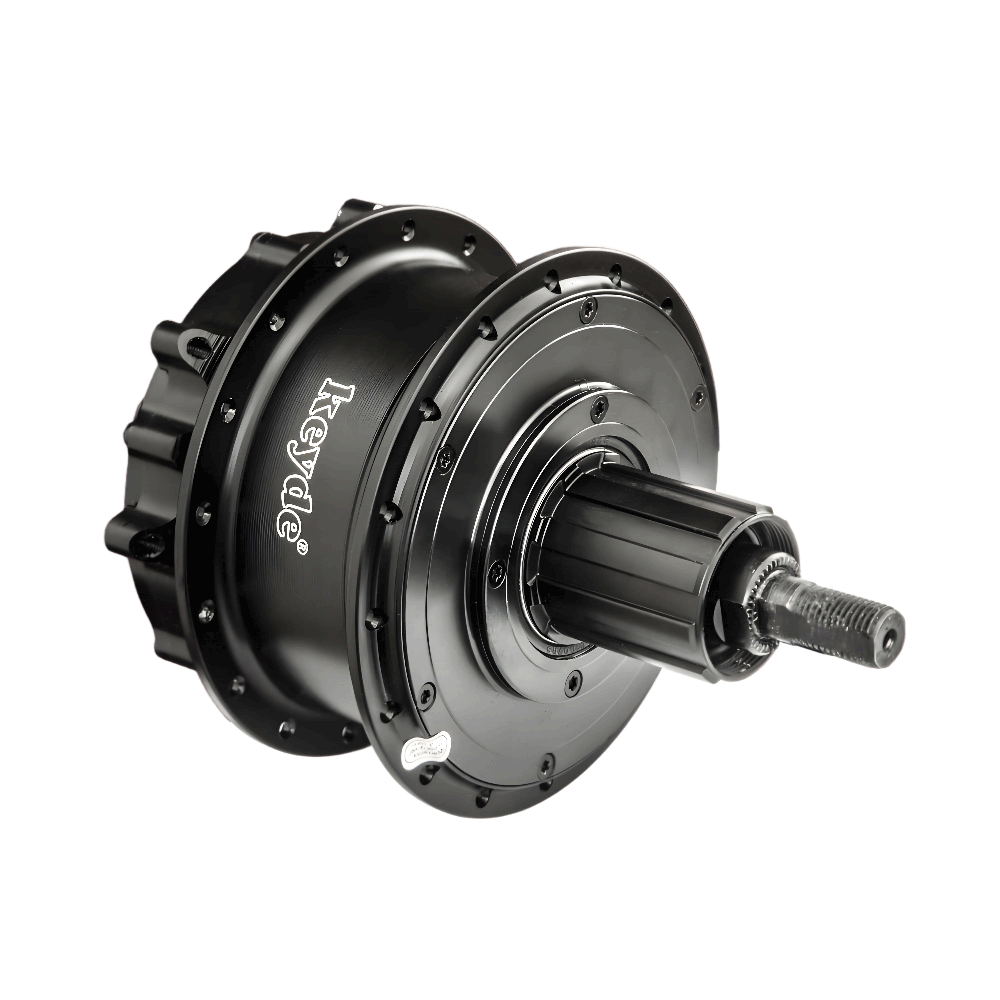

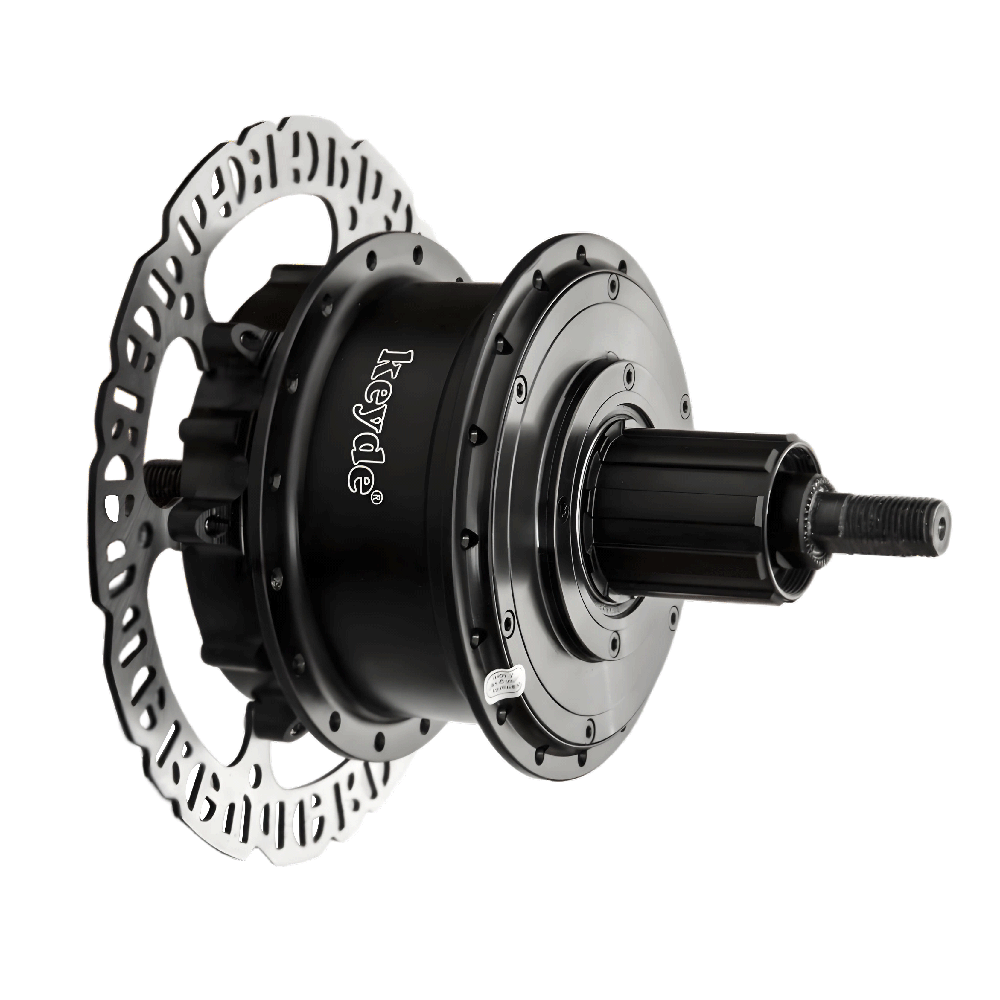

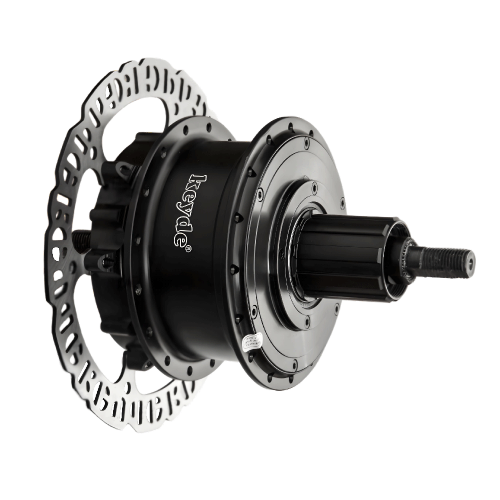

S110 Rear Motor

Hot sale for 10 years, quiet working, stable quality,  long life
  • Voltage:
    24V
    33V
    36V
  • Brake:
    Disc brake
    V-Brake
  • Spoke No.:
    20H
    24H
    28H
    32H
    36H
  • Connection Method:
    UART
    Bluetooth
Description Specification Dimension
Description

S110 rear hub motor has the following advantages:

1. The S110 motor has a built-in controller and sensor, which has the advantages of light weight, small size, no noise, and less wiring harness.

2. Work efficiency is as high as 89%, effectively reducing heat loss and increasing cruising range.

3. The maximum power can reach 500W, the torque exceeds 35N·m, and it can easily cross-country and mountaineering.
4. Quiet operation, the sound of the motor working can hardly be heard when riding outdoors.
5.
Support optional Bluetooth communication, no cables, wireless control

Specification

Item No.

S110SWXRDC36/S110SWXRC36

Diameter

113mm±1mm

Width

135±2mm

Brake types

Disc brake / V brake

Outlet position

Under the shaft on the right side

Free-wheel types

Cassette & Whirl

Gears

1-12s

Spoke no.

20H24H28H32H36H

Spoke types

14g

Controller

Internal

Sensor

Internal

Rated power

250W

Max. power

500W

Max. torque

35N·m

Rated voltage

36V

Rated input current

7.8A

Reduction ratio

1 : 13.5

Grade-ability

20%

Efficiency

89%

Revolution

160-260RPM

Applicable wheel diameter

14-29inch

Color

Black/Silver

Noise

50dB

Operation temperature

-20-45

Storage temperature

-20-45

Waterproof & Dust-proof

IP65

Weight

2.3KGS

Dimension
