Rear Motor

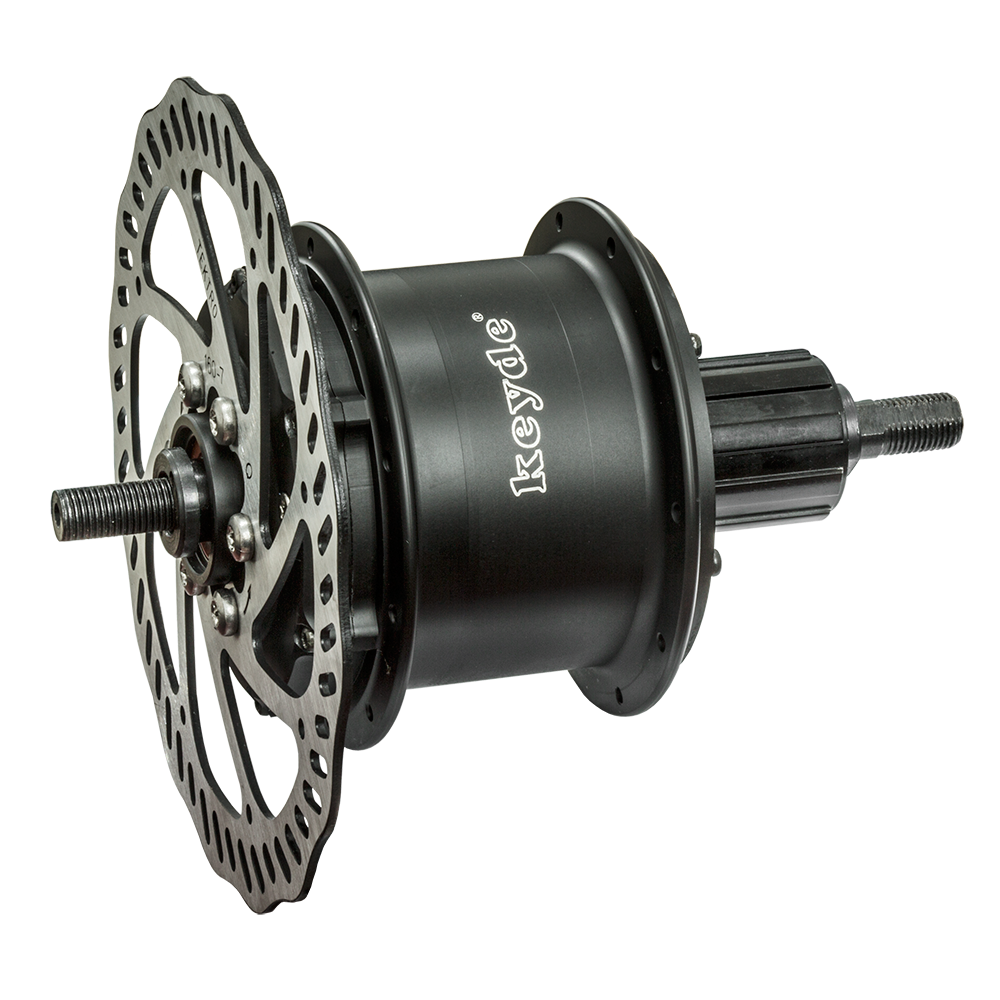

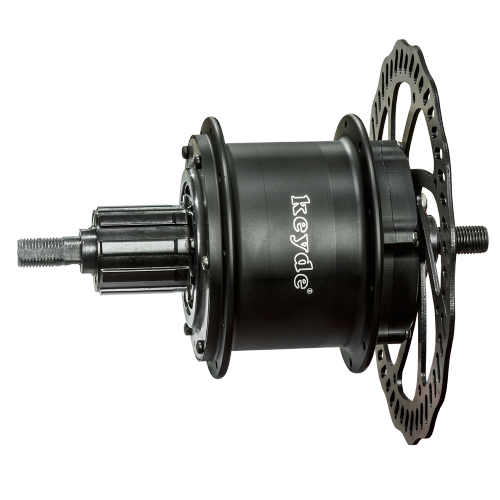

S100 Rear Motor

  • Voltage:
    24V
    33V
    36V
  • Brake:
    Disc brake
    V-Brake
  • Spoke No.:
    20H
    24H
    28H
    32H
    36H
  • Connection Method:
    UART
    Bluetooth
Description Specification Dimension
Description

The S100 rear hub motor has the following advantages:

1. The S100 motor has built-in controller and sensor, which has the advantages of light weight, small size, no noise, and less wiring harnesses.

2. The volume is very small, the motor can hardly be seen after the flywheel is installed.

3. The maximum power can reach 300W and the torque exceeds 25N·m, making it easy for off-road and mountaineering.

4. The operation is quiet, and the sound of the motor running can hardly be heard when riding outdoors.

5. Support optional Bluetooth communication, no cables, wireless control.

Specification

Item No.

S100SWXRDC36/S100SWXRC36

Diameter

102mm±1mm

Width

135±2mm

Brake types

Disc brake / V brake

Outlet position

Under the shaft on the right side

Free-wheel types

Cassette & Whirl

Gears

1-12s

Spoke no.

20H24H28H32H36H

Spoke types

14g

Controller

Internal

Sensor

Internal

Rated power

250W

Max. power

300W

Max. torque

25N·m

Rated voltage

36V

Rated input current

7.8A

Reduction ratio

1 : 13.5

Grade-ability

20%

Efficiency

88%

Revolution

160-260RPM

Applicable wheel diameter

14-29inch

Color

Black/Silver

Noise

50dB

Operation temperature

-20-45

Storage temperature

-20-45

Waterproof & Dust-proof

IP65

Weight

1.7KGS

Dimension
