The S100 front hub motor has the following advantages:

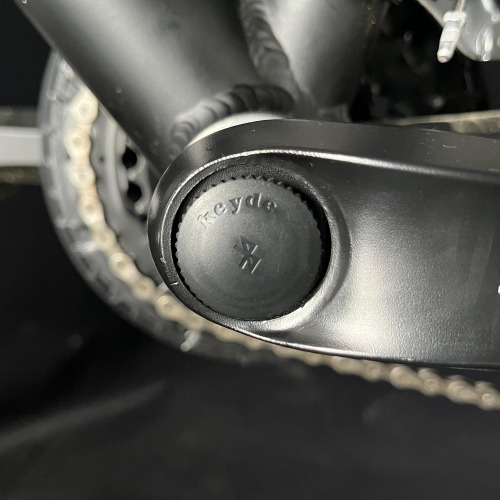

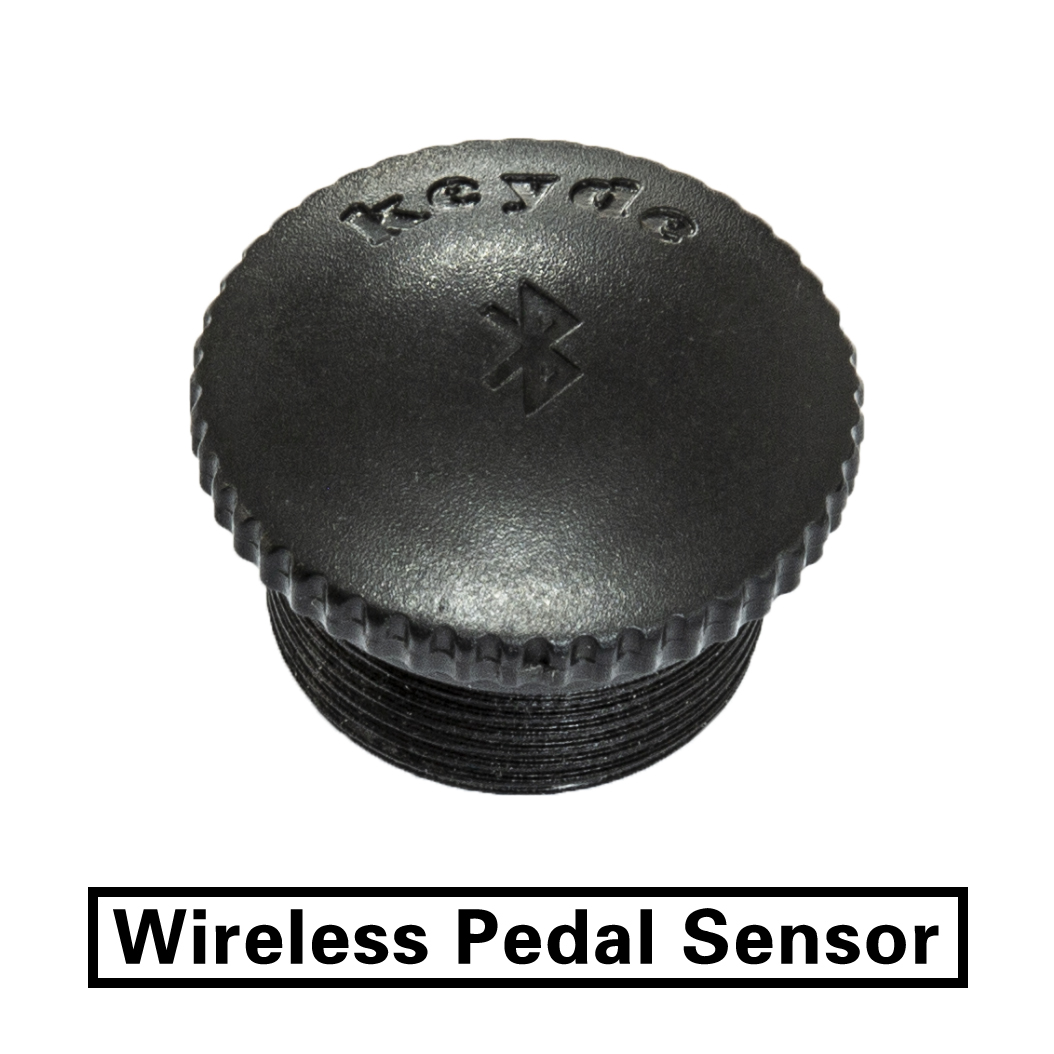

1. The S100 front motor has a built-in controller and a Bluetooth communication module, and need used with a wireless pedal sensor. It has the advantages of light weight, small size, no noise, and fewer wiring harnesses.
2. The volume is very small, the motor can hardly be seen after the flywheel is installed.
3. High work efficiency, which can effectively reduce heat loss and increase cruising range.
4. The maximum power can reach 300W and the torque exceeds 25N m, making it easy to cross-country and mountaineering.
5. The operation is quiet, and the sound of the motor running can hardly be heard when riding outdoors.
6. Bluetooth wireless connection, only need one cable to connect the battery.
Item No. |
S100SWXDC36/S100SWXC36 |
Diameter |
102mm±1mm |
Width |
100±2mm |
Brake types |
Disc brake / V brake |
Outlet position |
Under the shaft on the right side |
Spoke no. |
20H,24H,28H,32H,36H |
Spoke types |
13g / 14g |
Controller |
Internal |
Sensor |
Solar pedal sensor |
Rated power |
250W |
Max. power |
300W |
Max. torque |
25N·m |
Rated voltage |
36V |
Rated input current |
7.8A |
Reduction ratio |
1 : 13.5 |
Grade-ability |
>20% |
Efficiency |
>88% |
Revolution |
160-260RPM |
Applicable wheel diameter |
14-29inch |
Color |
Black/Silver |
Noise |
<50dB |
Operation temperature |
-20-45℃ |
Storage temperature |
-20-45℃ |
Waterproof & Dust-proof |
IP65 |
Weight |
1.6KGS |
