P130 has the following advantages:

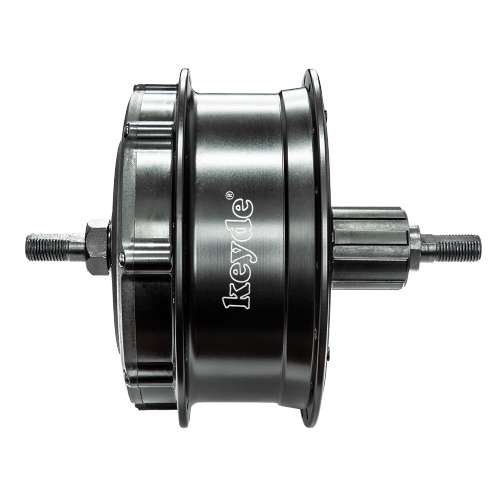

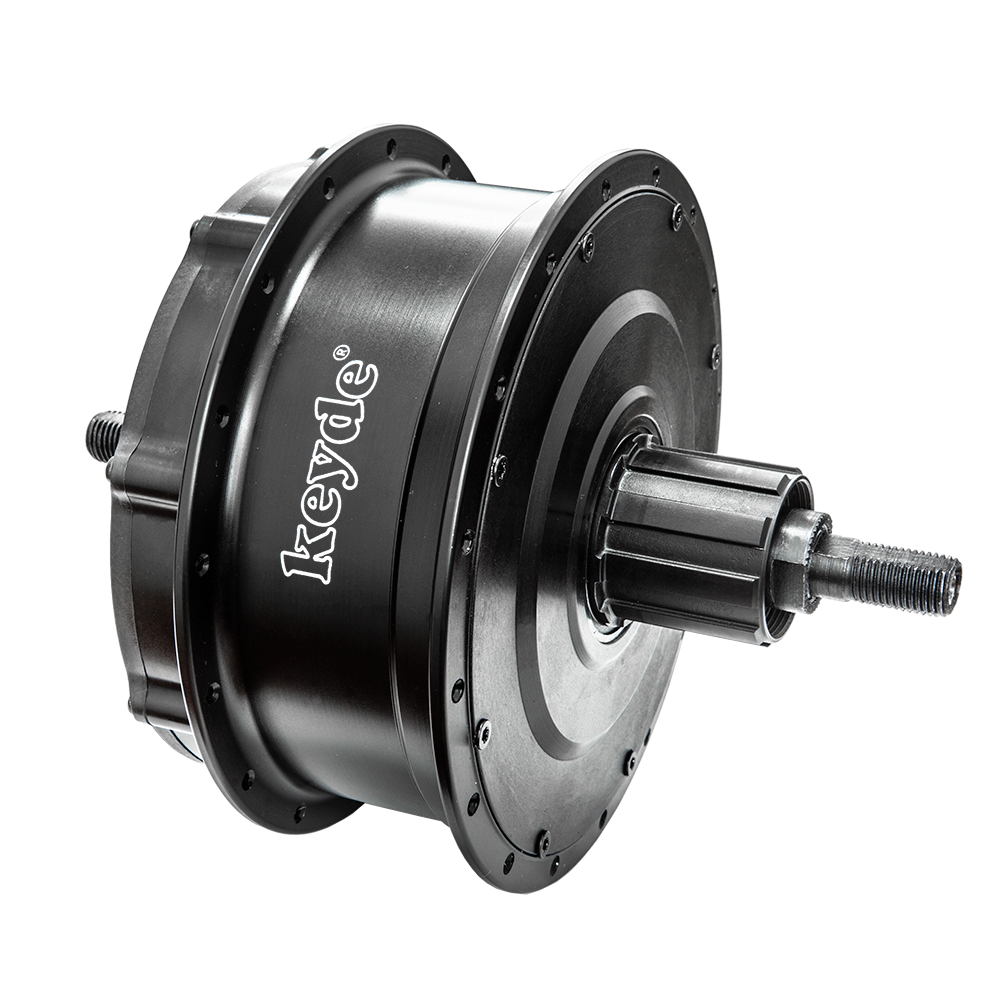

1. The P130 motor is based on the P100 motor, with a built-in 210Wh battery, built-in controller and sensor.
2. Built-in bluetooth module, wireless connection, no need for any cables, easy installation.
3. The dynamic torque sensing system is adopted to provide a better riding experience while ensuring riding safety.
4. Ramp sensing system is used to optimize torque sensing. When going uphill, the electric motor automatically increases torque without pedaling hard.
5. The work efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.
6. All-in-one, but the weight is only 2.7kgs
|
Item No. |
P130SWXRDC30/P130SWXRC30 |
|
Diameter |
143mm±1mm |
|
Width |
135±2mm |
|
Brake types |
Disc brake/ V brake |
|
Outlet position |
No cable |
|
Free-wheel types |
Cassette & Whirl |
|
Gears |
1-12s |
|
Spoke no. |
20H，24H，28H，32H，36H |
|
Spoke types |
14g |
|
Controller |
Internal |
|
Sensor |
Internal |
|
Battery |
7Ah |
|
Rated power |
250W |
|
Max. power |
350W |
|
Max. torque |
30N·m |
|
Rated voltage |
30V |
|
Rated input current |
8.3A |
|
Reduction ratio |
1 : 13.5 |
|
Grade-ability |
＞20% |
|
Efficiency |
＞90% |
|
Revolution |
160-260RPM |
|
Applicable wheel diameter |
14-29inch |
|
Color |
Black/Silver |
|
Noise |
＜50dB |
|
Operation temperature |
-20-45℃ |
|
Storage temperature |
-20-45℃ |
|
Waterproof & Dust-proof |
IP65 |
|
Weight |
2.7KGS |
