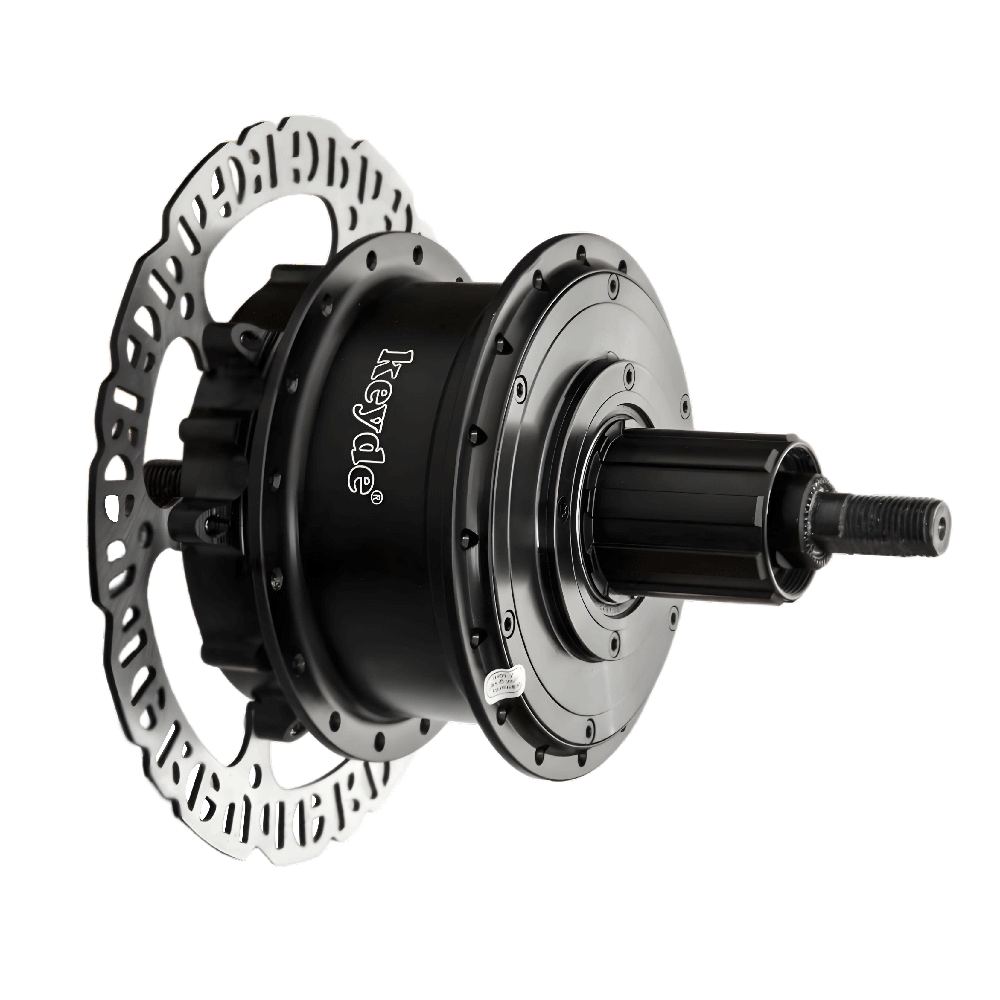

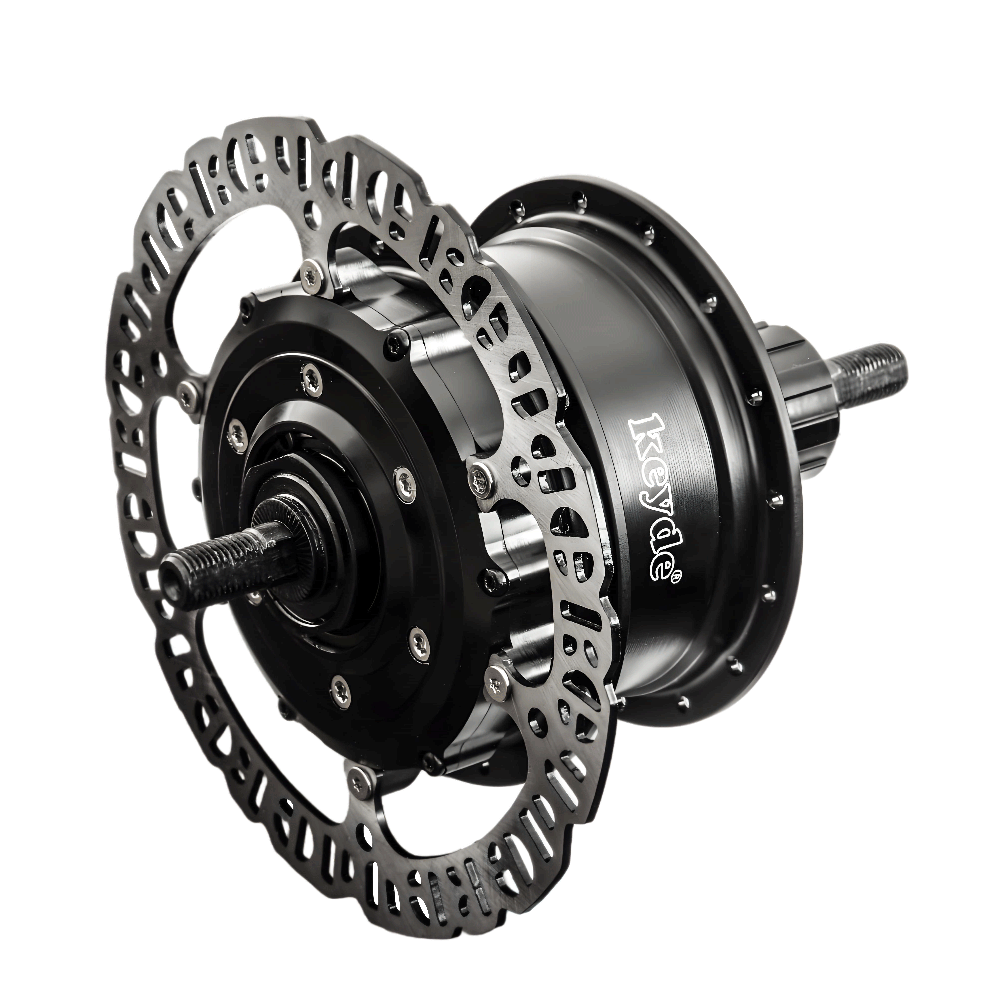

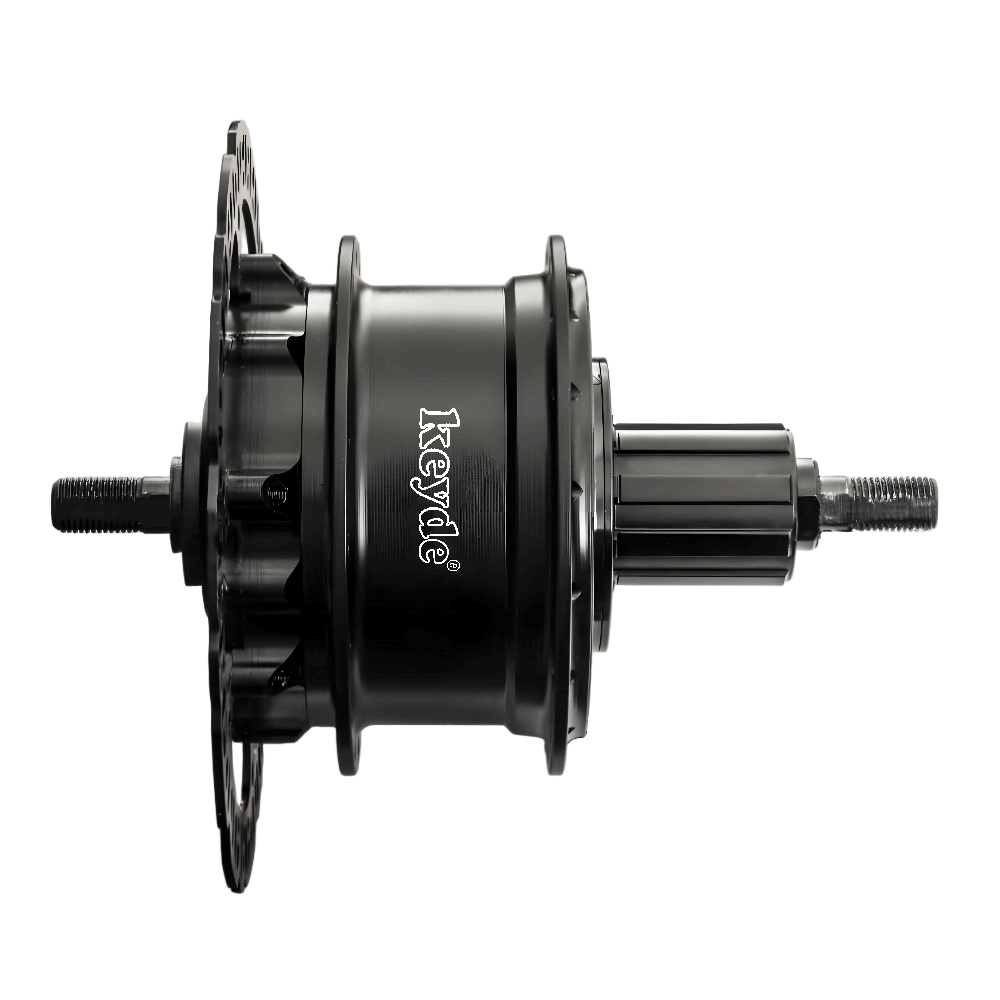

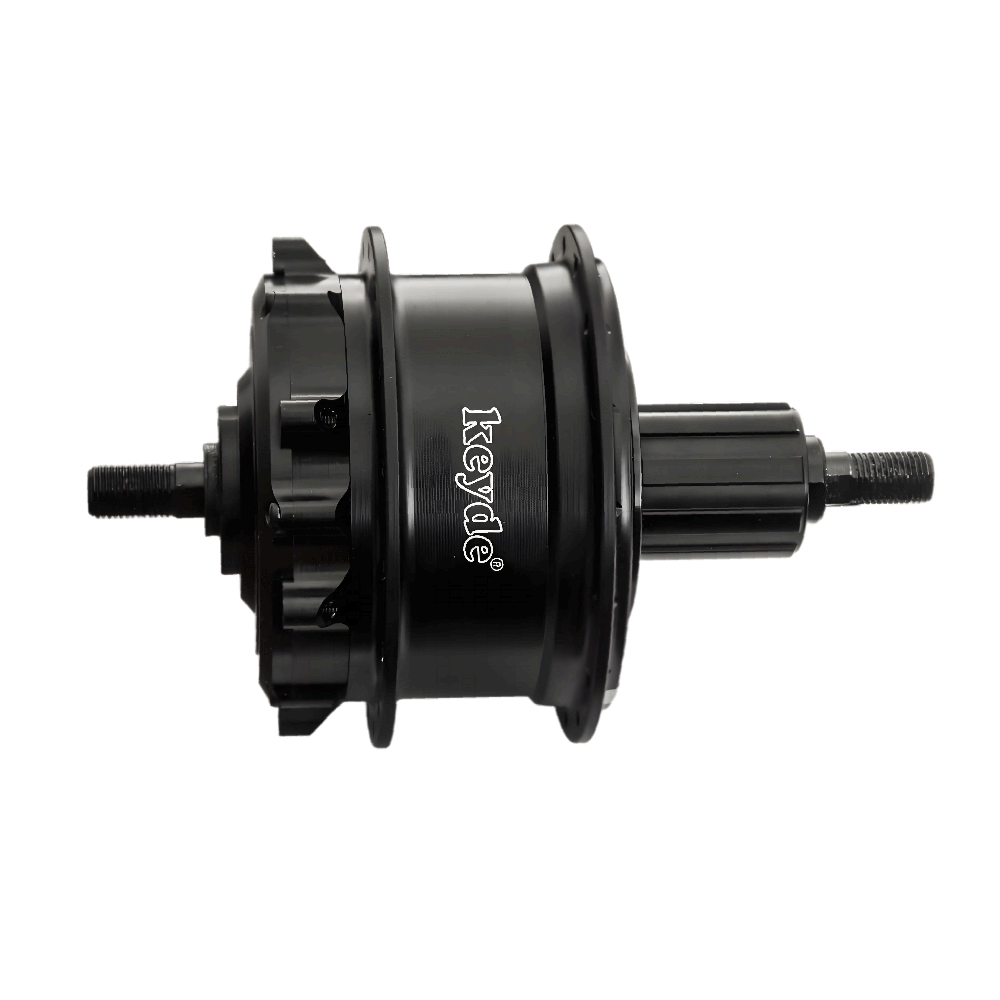

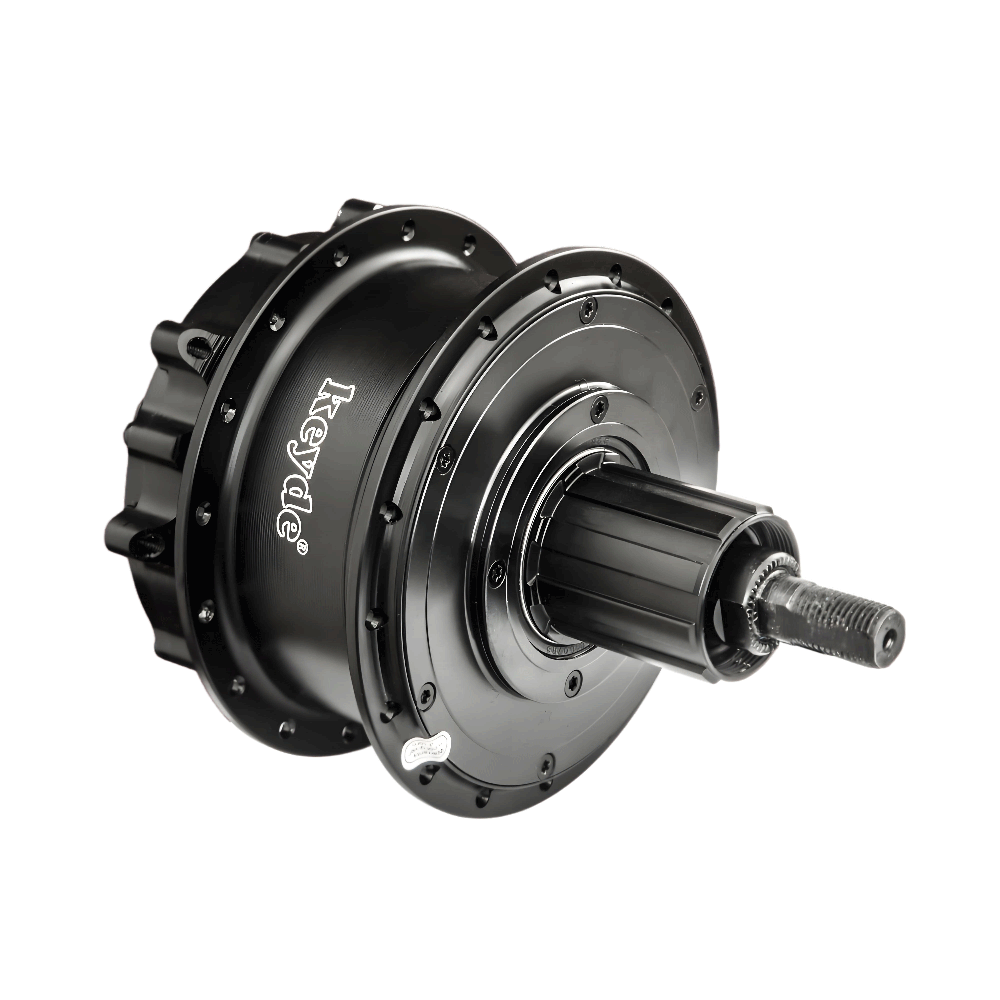

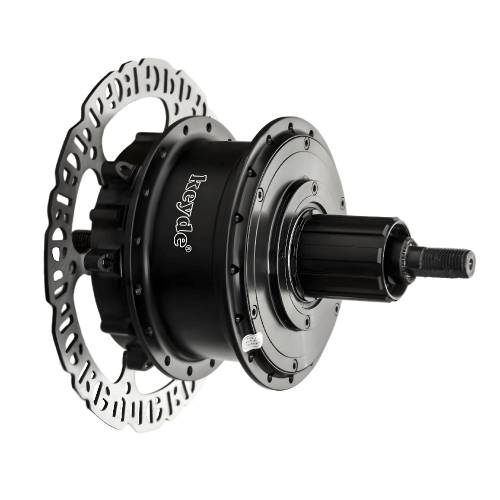

P110 has the following advantages:
1. The P110 motor has a built-in controller and sensor, which has the advantages of light weight, small size, no noise, and less wiring harness.
2. The dynamic torque sensing system is applied to provide a better riding experience while ensuring riding safety.
3. The slope induction system is used to optimize the torque induction. When going uphill, the motor will automatically increase the torque without pedaling hard.
4. Work efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.
5. The maximum power can reach 750W, the torque exceeds 50N·m, and it can easily cross-country and mountaineering.
6. Support optional Bluetooth communication, no cables, wireless control.
Item No. |
P110SWXRDC36/P110SWXRC36 |
Diameter |
113mm±1mm |
Width |
135±2mm |
Brake types |
Disc brake / V brake |
Outlet position |
Under the shaft on the right side |
Free-wheel types |
Cassette & Whirl |
Gears |
1-12s |
Spoke no. |
20H,24H,28H,32H,36H |
Spoke types |
14g |
Controller |
Internal |
Sensor |
Internal |
Rated power |
250W |
Max. power |
750W |
Max. torque |
40N·m |
Rated voltage |
36V |
Rated input current |
7.8A |
Reduction ratio |
1 : 13.5 |
Grade-ability |
>20% |
Efficiency |
>90% |
Revolution |
160-260RPM |
Applicable wheel diameter |
14-29inch |
Color |
Black/Silver |
Operation temperature |
-20-45℃ |
Storage temperature |
-20-45℃ |
Waterproof & Dust-proof |
IP65 |
Weight |
2.4KGS |
