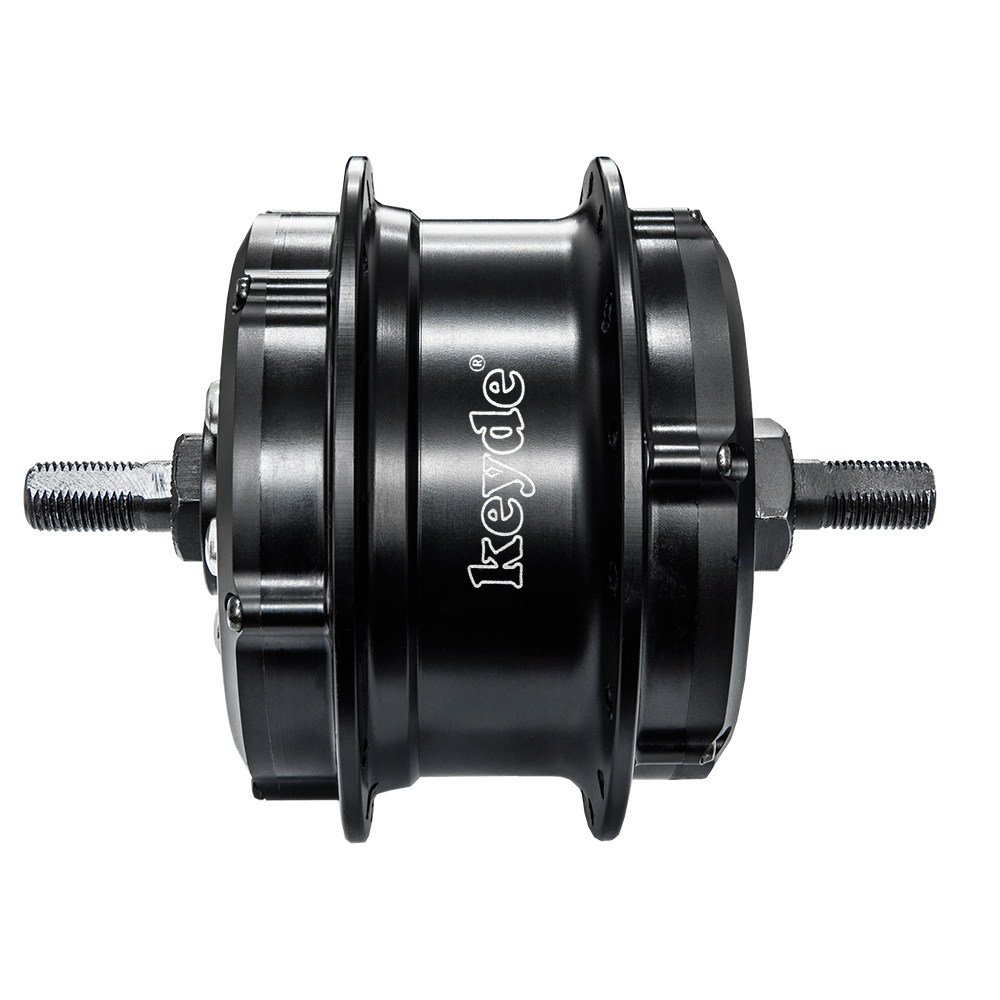

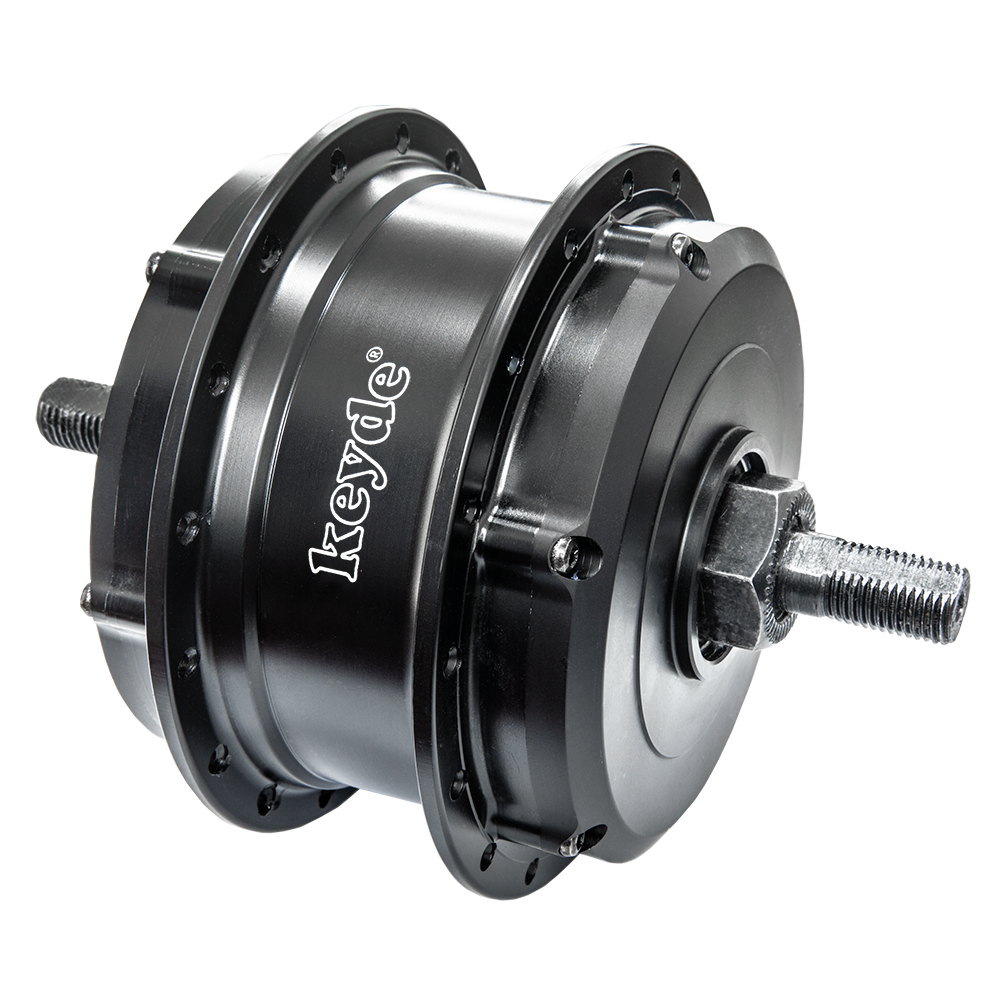

The P110 front motor has the following advantages:

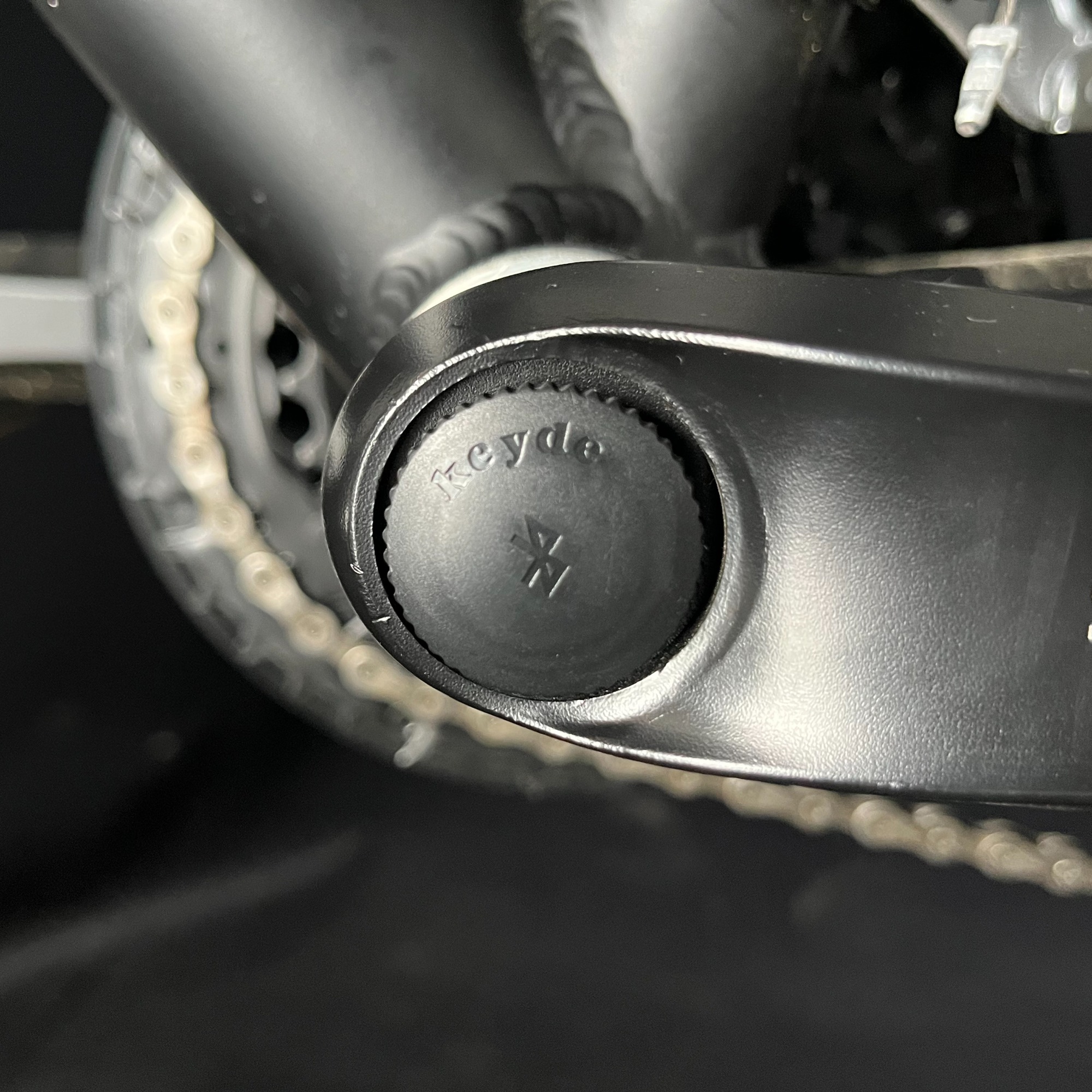

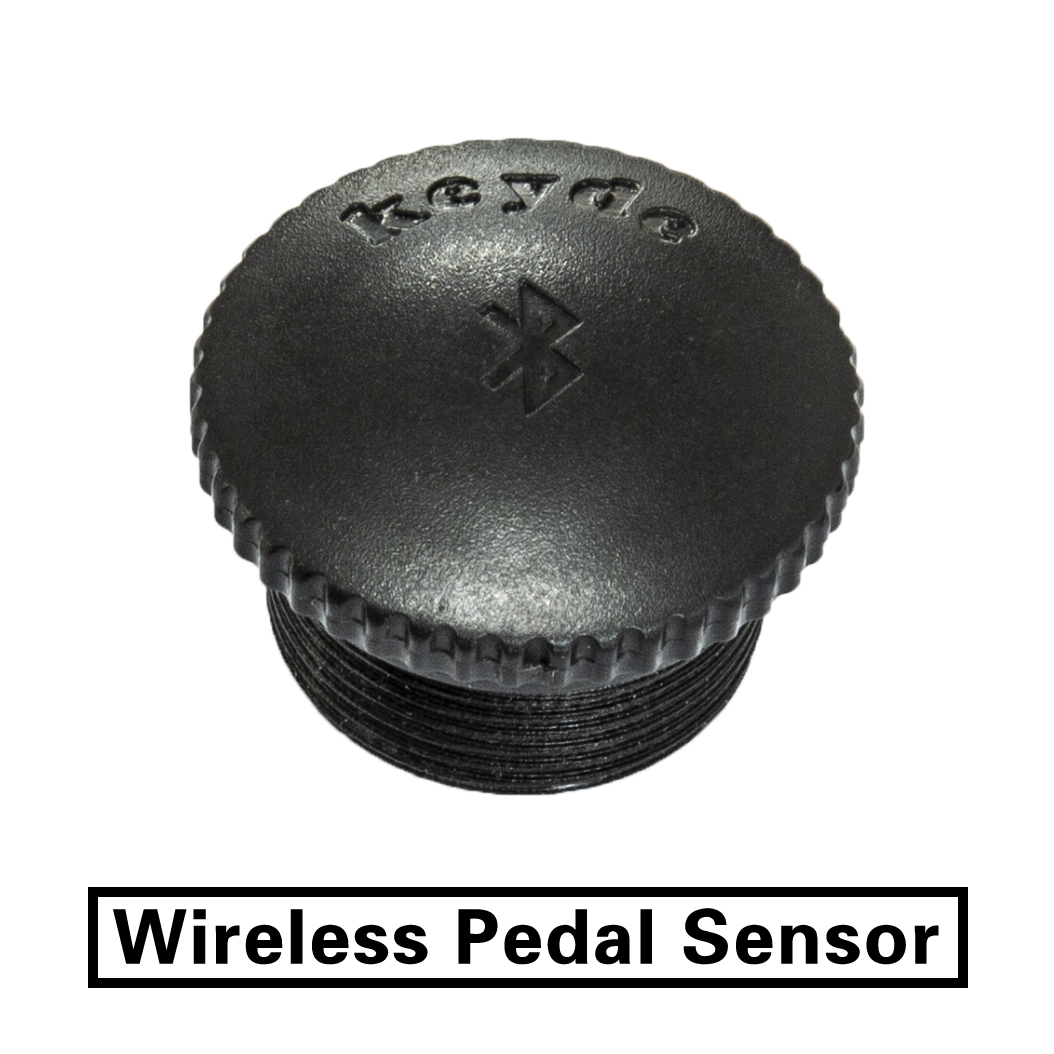

1. The P110 front motor has a built-in controller and a Bluetooth communication module. It needs to be used with a wireless pedal sensor. It has the advantages of light weight, small size, strong power and less wiring harness.
2. The working efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.
3. The maximum power can reach 750W and the torque exceeds 50N m, making it easy to cross-country and mountaineering.
4. Just one cable to connect the battery, easy installation.
5. Using Bluetooth communication, no cables, wireless control.
|
Item No. |
P110SWXDC36/P110SWXC36 |
|
Diameter |
113mm±1mm |
|
Width |
100±2mm |
|
Brake types |
Disc brake / V brake / Roller brake |
|
Outlet position |
Under the shaft on the right side |
|
Spoke no. |
20H，24H，28H，32H，36H |
|
Spoke types |
14g |
|
Controller |
Internal |
|
Sensor |
Solar pedal sensor |
|
Rated power |
250W |
|
Max. power |
750W |
|
Max. torque |
40N·m |
|
Rated voltage |
36V |
|
Rated input current |
7.8A |
|
Reduction ratio |
1 : 13.5 |
|
Grade-ability |
＞20% |
|
Efficiency |
＞90% |
|
Revolution |
160-260RPM |
|
Applicable wheel diameter |
14-29inch |
|
Color |
Black/Silver |
|
Operation temperature |
-20-45℃ |
|
Storage temperature |
-20-45℃ |
|
Waterproof & Dust-proof |
IP65 |
|
Weight |
2.3KGS |
