Rear Motor

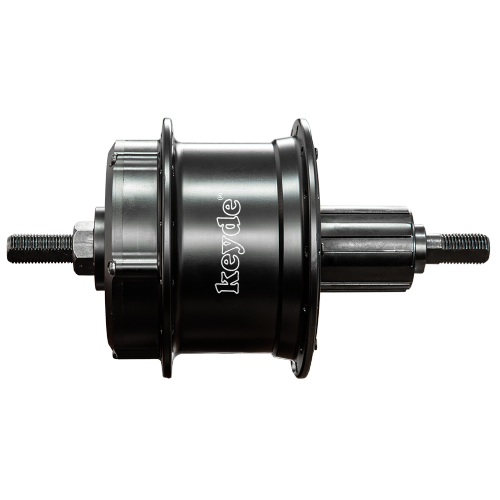

P100 Rear Motor

  • Voltage:
    36V
  • Brake:
    Disc brake
    V-Brake
  • Spoke No.:
    20H
    24H
    28H
    32H
    36H
  • Connection Method:
    UART
    Bluetooth
Description Specification Dimension
Description

P100 rear motor has the following advantages:

1. The P100 motor has a built-in controller and sensor, which has the advantages of light weight, small size, no noise, and less wiring harness.

2. The dynamic torque sensing system is adopted to provide a better riding experience while ensuring riding safety.

3. The slope induction system is used to optimize torque induction. When going uphill, the motor will automatically increase the torque without pedaling hard.

4. The working efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.

5. The volume is very small, but the power is strong, the maximum power can reach 750W, and the torque exceeds 30N·m.

6. Support optional Bluetooth communication, no cables, wireless control

Specification

Item No.

P100SWXRDC36/P100SWXRC36

Diameter

103mm±1mm

Width

135±2mm

Brake types

Disc brake / V brake

Outlet position

Under the shaft on the right side

Free-wheel types

Cassette body

Gears

1-12s

Spoke no.

20H24H28H32H36H

Spoke types

14g

Controller

Internal

Sensor

Internal

Rated power

250W

Max. power

500W

Max. torque

30N·m

Rated voltage

36V

Rated input current

7.8A

Reduction ratio

1 : 13.5

Grade-ability

20%

Efficiency

89%

Revolution

160-260RPM

Applicable wheel diameter

14-29inch

Color

Black/Silver

Operation temperature

-20-45

Storage temperature

-20-45

Waterproof & Dust-proof

IP65

Weight

1.8KGS

Dimension
