Front Motor

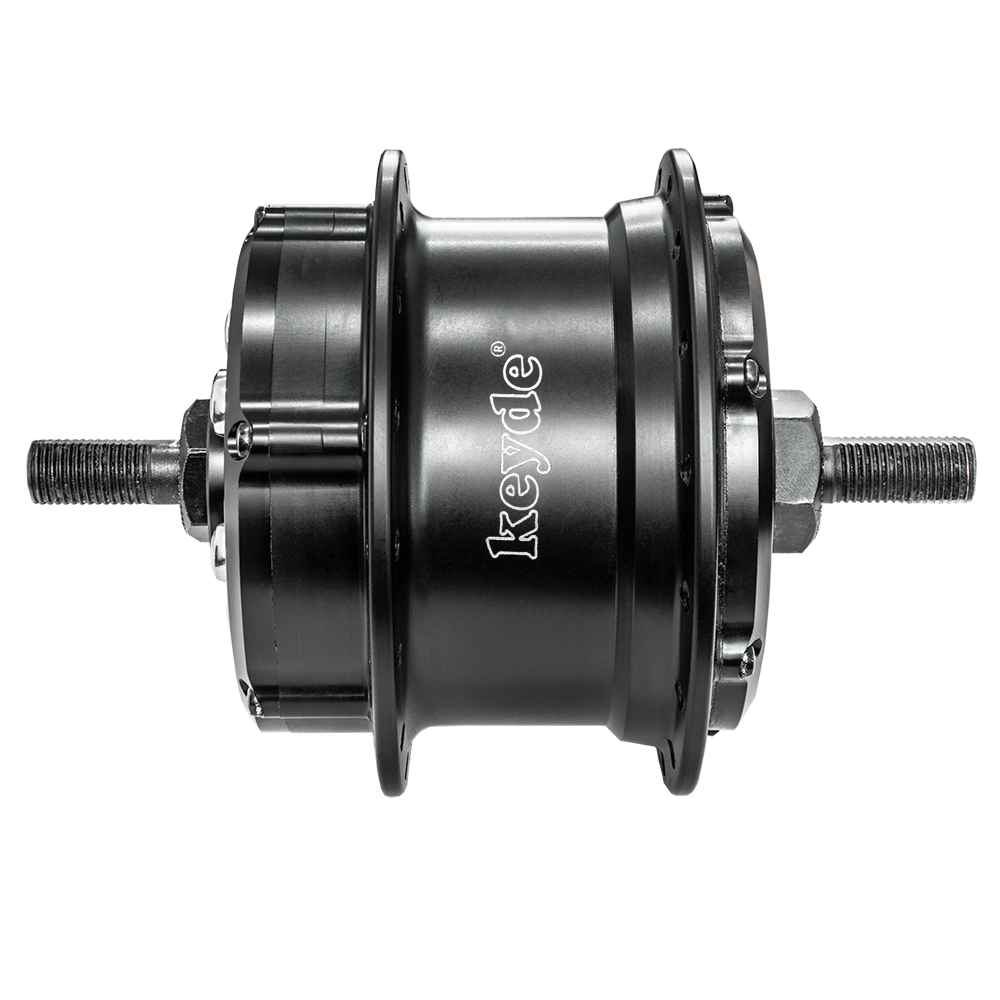

P100 Front Motor

  • Voltage:
    36V
  • Brake:
    Disc brake
    V-Brake
  • Spoke No.:
    20H
    24H
    28H
    32H
    36H
  • Connection Method:
    Bluetooth
Description Specification Dimension
Description

P100 front motor has the following advantages:

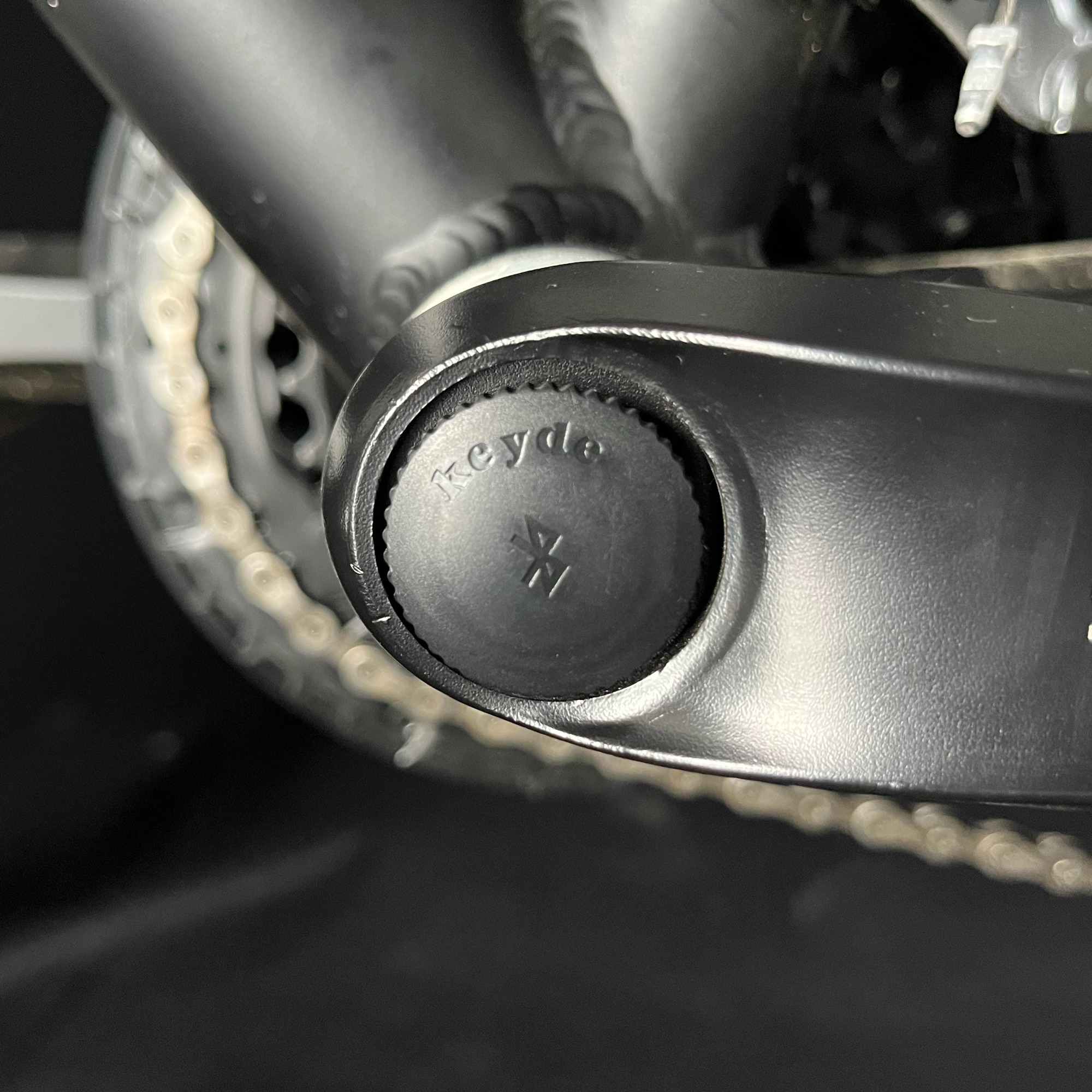

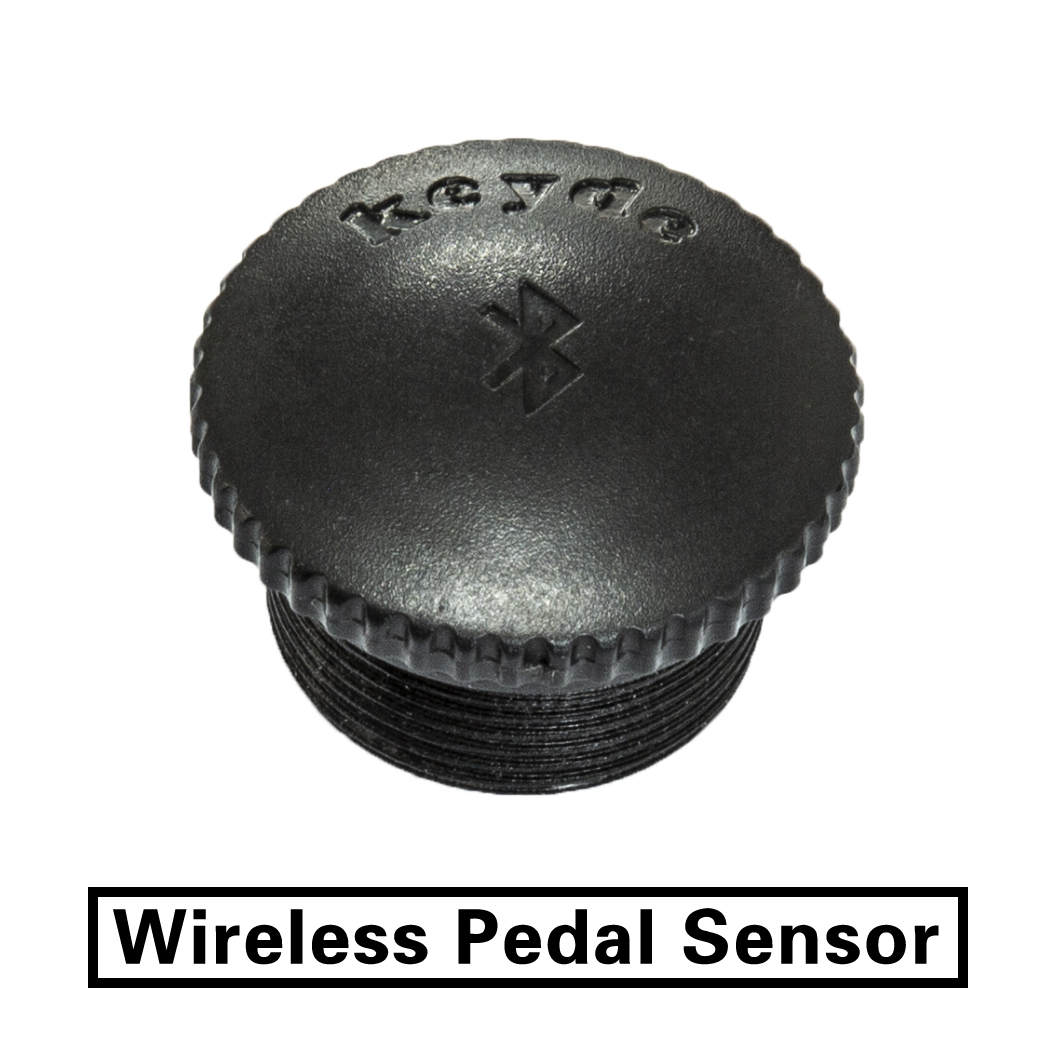

1. The P100 front motor has a built-in controller and bluetooth communication module, It needs to be used with a solar pedal sensor. 2. The P100 front motor has the advantages of light weight, small size, no noise, and less wiring harness.

3. The working efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.

4. Just one cable to connect the battery, easy installation.

5. Using Bluetooth communication, no cables, wireless control.

Specification

Item No.

P100SWXRDC36/P100SWXRC36

Diameter

103mm±1mm

Width

135±2mm

Brake types

Disc brake / V brake

Outlet position

Under the shaft on the right side

Gears

1-12s

Spoke no.

20H24H28H32H36H

Spoke types

14g

Controller

Internal

Sensor

Internal

Rated power

250W

Max. power

750W

Max. torque

35N·m

Rated voltage

36V

Rated input current

7.8A

Reduction ratio

1 : 13.5

Grade-ability

20%

Efficiency

89%

Revolution

160-260RPM

Applicable wheel diameter

14-29inch

Color

Black/Silver

Operation temperature

-20-45

Storage temperature

-20-45

Waterproof & Dust-proof

IP65

Weight

2.1KGS

Dimension
